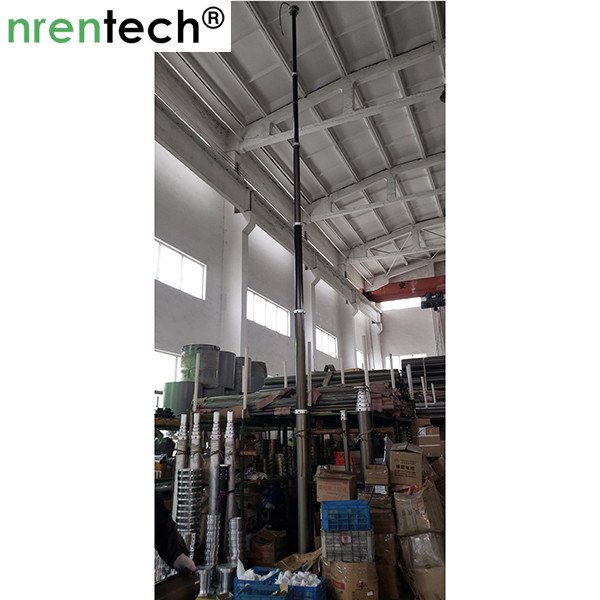

9m lighting pneumatic telescopic mast/ inside wires/ pneumatic lifting/ 50kg payloads/ 2.2m retraction

Name: 9m lighting pneumatic telescopic mast/ inside wires/ pneumatic lifting/ 50kg payloads/ 2.2m retraction
Brand: Huaian Nengren Manufacture and Trade Co.,Ltd.
SKU: NR-2200-9000-50D
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: nrentech

Certification: ISO/CE

Model Number: NR-2200-9000-50D

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 2500~3500/unit

Packaging Details: carton box.

Delivery Time: 20 days

Payment Terms: T/T

Supply Ability: 200 units per month

Get Best Price

Product Details

Product Description

Highlight:

Materials:	Aluminum Alloy AL6063T5	Extend Height:	9m
Retract Height:	2.2m	Number Of Sections:	6
Section Dia.:	66~160mm	Working Air Pressure:	0.2Mpa/29PSI
Weight:	60kg Approx.	Inner Cables:	4x1.5mm Electric Cables Mounted Inside For Lighting
Accessories:	1xtop Flange, 1x Bottom Flange, 1x Air Hose Pipe	Optional Accessories:	Electric Air Compressor, Side Mounting Brackets
Payloads:	70kg Max.

Materials:	Aluminum Alloy AL6063T5
Extend Height:	9m
Retract Height:	2.2m
Number Of Sections:	6
Section Dia.:	66~160mm
Working Air Pressure:	0.2Mpa/29PSI
Weight:	60kg Approx.
Inner Cables:	4x1.5mm Electric Cables Mounted Inside For Lighting
Accessories:	1xtop Flange, 1x Bottom Flange, 1x Air Hose Pipe
Optional Accessories:	Electric Air Compressor, Side Mounting Brackets
Payloads:	70kg Max.

9m lighting pneumatic telescopic mast/ inside wires/ pneumatic lifting/ 50kg payloads/ 2.2m retraction

9m Pneumatic Telescopic Mast for Lighting Tower
inner spiral cables mounted for lighting

1> Item #: NR-2200-9000-50D

2> Extended Height: 9m

3> Retracted Height: 2.2m

4> Payloads: 50kg max.

5> Inner spiral cables: 4x 1.5 sq.mm

6> Number of sections: 6

7> Section dia.: 66mm~160mm

8> Working air pressure: 0.1Mpa/14.5PSI

9> Working temperature: -25~85Celsius Degrees

10> Default accessories: 1x top flange, 1x bottom flange, 1x air hose pipe

11> Mast weight: 70kg approx.

Tower Light Mast

Part #	Payload	Extended Height	Retracted Height	Mast Weight	Sections	Sections Diameter	Collar Type	Operate Pressure	Internal Cables
NR1300-2700-25D	25kg/55lb	2.7m/8.9’	1.3m/4.3’	11kg/24lb	3	43~70mm/1.7~2.8”	Non-locking	0.2Mpa/29PSI	RVV 4x1.5mm²
NR1270-3200-35D	35kg/77lb	3.2m/10.5’	1.27m/4.17	14kg/30.8'	4	43~87mm/1.69~3.43"	Non-locking	0.2Mpa/29PSI	RVV 4x 1.5mm²
NR1520-4200-35D	35kg/77lb	4.2m/13.8’	1.52m/5’	16kg/35.2lb	4	43~87mm/1.69~3.43"	Non-locking	0.2Mpa/29PSI	RVV 4x 1.5mm²
NR1500-4500-50D	50kg/110lb	4.5m/14.8’	1.52m/4.9’	25kg/55lb	5	51~118mm/2.1~4.65"	Non-locking	0.2Mpa/29PSI	RVV 4x 2.0mm²
NR1750-6000-50D	50kg/110lb	6m/19.7’	1.75m/5.74’	35kg/77lb	5	51~118mm/2.1~4.65"	Non-locking	0.2Mpa/29PSI	RVV 2x2.0mm²
NR1750-6000-70D	70kg/154lb	6m/19.7’	1.75m/5.74’	45kg/99lb	5	66~140mm/2.6~5.51"	Non-locking	0.2Mpa/29PSI	RVV 2x2.5mm² + 4x1.5mm²
NR1950-6500-100D	100kg/220lb	6.5m/21.3’	1.95m/6.4’	65kg/143lb	5	82~160mm/3.22~6.3"	Non-locking	0.2Mpa/29PSI	RVV 2x1.5mm² + 8x2.5mm²
NR1950-6500-300D	300kg/660lb	6.5m/21.3’	1.95m/6.4’	80kg/176lb	5	140~229mm/5.5~9"	Non-locking	0.2Mpa/29PSI	RVV 12x2.5mm²
NR2000-8000-100D	100kg/220lb	8.0m/26.2’	2m/6.6’	80kg/176lb	6	82~180mm/3.22~7.1"	Non-locking	0.2Mpa/29PSI	7x AWG14
NR2200-9000-50D	50kg/110lb	9m/29.5’	2.2m/7.22’	65kg/143lb	6	51~140mm/2.1~5.51"	Non-locking	0.2Mpa/29PSI	RVV 4x1.5mm²
NR2500-9000-300D	300kg/660lb	9m/29.5’	2.5m/8.2’	150kg/330lb	5	140~229mm/5.5~9"	Non-locking	0.2Mpa/29PSI	RVV 12x2.5mm²
